/+.&6.
15

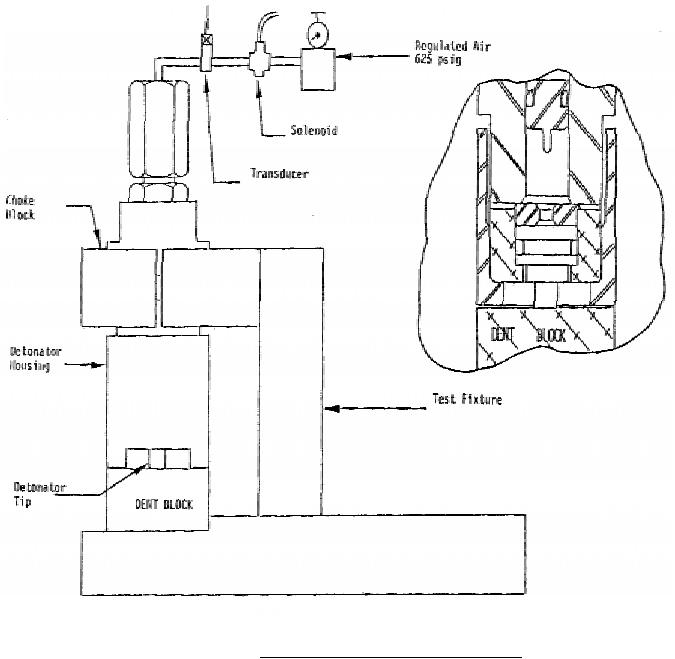

FIGURE 6. Schematic of cartridge test firing setup.
4.3.10.1 Dent block indent. An indent shall be obtained in a 6061-T6 aluminum dent block. The
cartridge shall meet the requirements of 3.5.6.1.
4.3.10.2 Test failure. If a test failure is attributable to an assignable cause, excluding the cartridges, the
original test results shall be discarded and the test re-conducted.
4.4 Acceptance criteria. The cartridges shall meet the requirements of 3.5 when tested as specified in
4.3.5 through 4.3.10. The acceptable number of defects is 0 and the rejection number is 1.
5. PACKAGING
