MIL-DTL-82945B (OS)

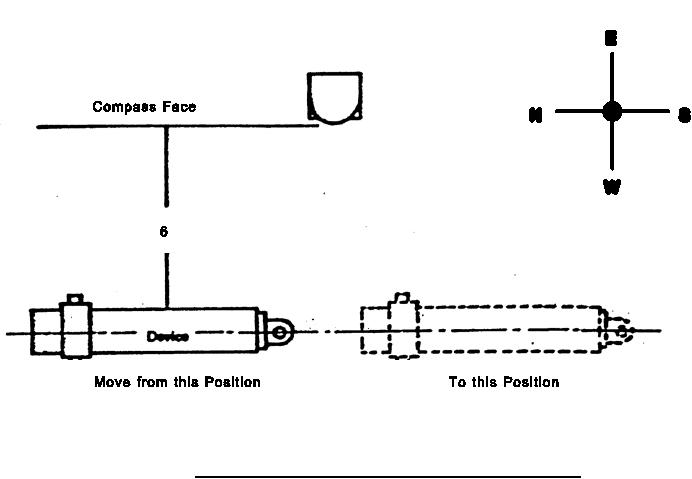

NOTE: Device and compass shall lie in a common horizontal plane
FIGURE 2. Layout for determination of residual magnetism in device.
3.10.4 Thirty-day storage test. The rocket catapult shall withstand the 30-day storage test of 4.3.1.4.
3.11 Identification markings. Each CKU-10/A rocket catapult shall be marked in accordance with
Drawing 513-174-0100 with an identification label, a warning label, a nozzle label, an external igniter
label, and an installation label. Each CKU-11/A rocket catapult shall be marked in accordance with
Drawing 513-174-0200 with an identification label, a warning label, a nozzle label, an external igniter
label, and an installation label.
3.11.1 Production lot designation. The production lot number shall follow MIL-STD-1168. The
construction of the lot number shall be as follows:
XXX
10
A
001
-001
a
b
c
d
e
Where:
a = Manufacturer's identification code.
b = The year of manufacture of the oldest batch of propellant (catapult or rocket motor)
in the lot.
10
